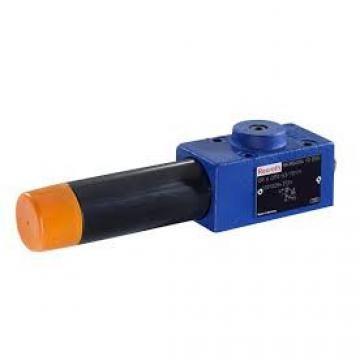

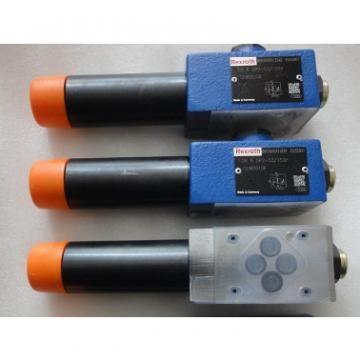

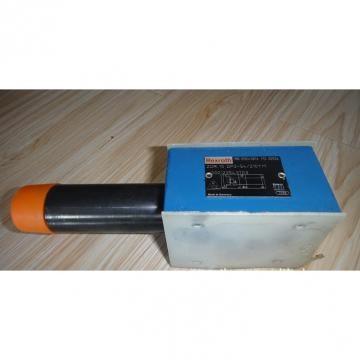

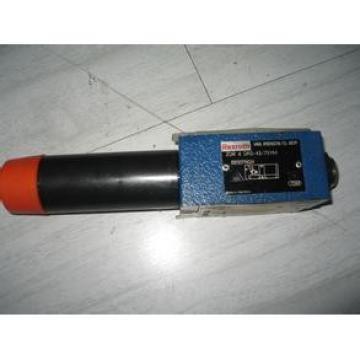

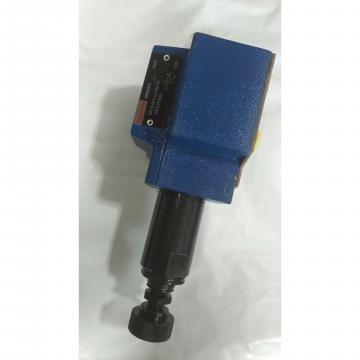

R900500256 DR 10 DP1-4X/150YM Rexroth Pressure reducing valve, direct operated DR 10 DP

Place of Origin:Germany
Brand Name:Rexroth
Model Number:
R900500256 DR 10 DP1-4X/150YM
Min.Order Quantity:Negotiation
Price:contact us
Packaging Details:standrd package
Delivery Time:5-7 work day
Payment Terms:T/T,Western Union
Supply Ability:65 pcs

Product Description

R900500256 DR 10 DP1-4X/150YM Datasheet:

Size			10
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +50
Ambient temperature range	FKM seals	°C	-20 … +50
Weight		kg	3

hydraulic

Size			10
Maximum operating pressure	Port B	bar	315
Maximum secondary pressure	Port A	bar	25 75 150 210
Maximum counter pressure	Port T (Y)	bar	160
Maximum flow		l/min	80
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seal	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oils and related hydrocarbons		HL, HLP, HLPD	NBR, FKM	DIN 51524
Environmentally compatible	Insoluble in water	HETG	NBR, FKM	ISO 15380
	Insoluble in water	HEES	FKM	ISO 15380
	Soluble in water	HEPG	FKM	ISO 15380
Containing water	Water-free	HFDU, HFDR	FKM	ISO 12922
Containing water	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922
Important information on hydraulic fluids! For further information and data on the use of other hydraulic fluids, please refer to data sheet 90220 or contact us! There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! Flame-resistant – containing water: Maximum operating pressure 210 bar Maximum hydraulic fluid temperature 60 °C Expected life cycle as compared to HLP hydraulic oil 30 % to 100 %
