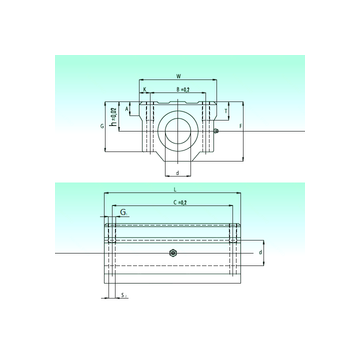

SCW 08-UU NBS Linear Bearings

SCW 08-UU NBS Linear Bearings

Name	SCW 08-UU	SCW 08-UU AS
Brand	NBS	NBS
Bore Diameter (mm)	8(mm)	8(mm)
d	8 mm 0.315 in	8 mm 0.315 in
Thread (G1)	M4	M4
h	11 mm 0.4331 in	11 mm 0.4331 in
A	6 mm 0.2362 in	6 mm 0.2362 in
B	24 mm 0.9449 in	24 mm 0.9449 in
C	42 mm 1.6535 in	42 mm 1.6535 in
F	22 mm 0.8661 in	22 mm 0.8661 in
G	18 mm 0.7087 in	18 mm 0.7087 in
K	5 mm 0.1969 in	5 mm 0.1969 in
L	58 mm 2.2835 in	58 mm 2.2835 in
S2	3,4 mm 0.1339 in	3,4 mm 0.1339 in
T	8 mm 0.315 in	8 mm 0.315 in
W	34 mm 1.3386 in	34 mm 1.3386 in
Weight	0,102 Kg	0,102 Kg
Basic dynamic load rating (C)	0,44 kN	0,44 kN

Qishun Industrial Manufacture Co.,Limited is your best, safest & quickest partner to buy Hydraulic components. You just send us the part number or you tell us the brand and sepcification you are looking for, we'll make the quotation for you asap.
