SX011848 INA Complex Bearings

  • INA
  • SX011848

  • Negotiation
  • Negotiation
Contact NowChat Now
Qishun Industrial Manufacture Co.,Limited.

Qishun Industrial Manufacture Co.,Limited.China

  • Qishun Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
    Welcome to my shop! Glad to serve you! Please send your question!
Price Inspection Certificate Product Specifications Company Profile
SX011848 INA Complex Bearings pdf

Product Description

SX011848 INA Complex Bearings

NameSX011848SX 011848
BrandINAISB
sr min0,010 mm / Min. radial bearing clearance
0.0004 in
sr max0,030 mm / Max. radial bearing clearance
0.0012 in
sk min0,020 mm / Min. axial tilting clearance
0.0008 in
sk max0,06 mm / Max. axial tilting clearance
0.0024 in
RLOmax0,010 mm / Low clearance: Preload
0.0004 in
VSPmin0,005 mm / Min. bearing preload
0.0002 in
VSPmax0,025 mm / Max. bearing preload
0.001 in
Ca148000 N / Dynamic load rating (axial)
C0a640000 N / Static load rating (axial)
Cr105000 N / Dynamic load rating (radial)(for radial load only)
C0r255000 N / Static load rating (radial)(for radial load only)
nG Ol280 1/min / Limiting speed for oil lubrication with preload
nG Fett280 1/min / Limiting speed for grease lubrication with normal clearance

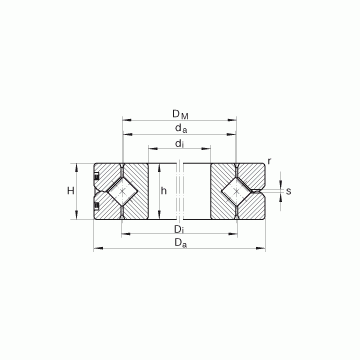

Size (mm)240x300x28(mm)240x300x28(mm)
Bore Diameter (mm)240(mm)240(mm)
Outer Diameter (mm)300(mm)300(mm)
Width (mm)28(mm)28(mm)
di - 240 mm / Tolerance: K6 +0,005 / -0,024240 mm / Tolerance: K6 +0,005 / 0,024
9.4488 in
Da - 300 mm / Tolerance: h6 -0,032300 mm / Tolerance: h6 0,032
11.811 in
H - 28 mm / Tolerance: +/-0,1328 mm / Tolerance: +/0,13
1.1024 in
Di270,8 mm
10.6614 in
DM270 mm
10.6299 in
da269,2 mm
10.5984 in
h - 28 mm / Tolerance: E8 -0,02528 mm / Tolerance: E8 0,025
1.1024 in
rmin2 mm
0.0787 in
S2 mm
0.0787 in
m5,3 kg / Weight
0,010 mm / Running accuracy, axial
0.0004 in
