RTC395 INA Complex Bearings

RTC395 INA Complex Bearings

Name	RTC395	PCM 353950 M	23956
Brand	INA	SKF	NTN
Size (mm)	395x525x20(mm)	35x39x50(mm)	280x380x75(mm)
Bore Diameter (mm)	395(mm)	35(mm)	280(mm)
Outer Diameter (mm)	525(mm)	39(mm)	380(mm)
Width (mm)	20(mm)	50(mm)	75(mm)

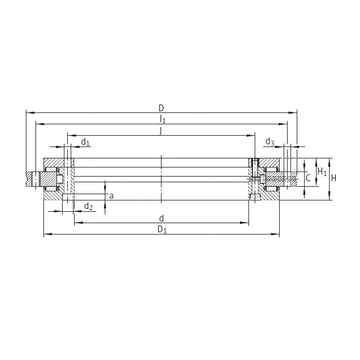

d	395 mm 15.5512 in	35 mm 1.378 in	280 mm 11.0236 in
D	525 mm 20.6693 in	39 mm 1.5354 in	380 mm 14.9606 in
C	20 mm 0.7874 in		75 mm 2.9528 in
H	65 mm 2.5591 in
a	9,3 mm 0.3661 in
d1	9,3 mm 0.3661 in
d2	15 mm 0.5906 in
d3	9,3 mm 0.3661 in
D1	486 mm 19.1339 in
H1	42,5 mm 1.6732 in
J	415 mm 16.3386 in
J1	505 mm 19.8819 in
Weight	33 Kg	0,078 Kg	26,4 Kg
Dynamic load rating radial (C)	186 kN
Dynamic load rating axial (C)	300 kN
Static load rating radial (C0)	655 kN
Static load rating axial (C0)	2280 kN
