53409U KOYO Thrust Ball Bearings
category
Thrust Ball Bearings
KOYO 53409U SPECIFICATIONS
- KOYO
53409U
- Negotiation
- Negotiation
-
Qishun Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
KOYO 53409U Product Description

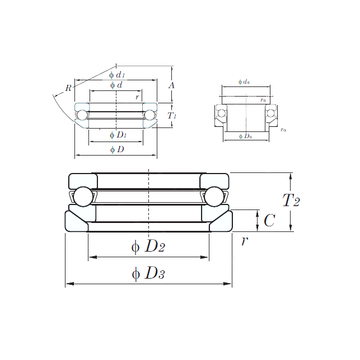

53409U KOYO Thrust Ball Bearings
 |  |  | |
| Name | 53409U | 53409U | 53409U |
| Brand | KOYO | NSK | NACHI |
| Size (mm) | 45x100x42.4(mm) | 45x100x46(mm) | 45x100x46(mm) |
| Bore Diameter (mm) | 45(mm) | 45(mm) | 45(mm) |
| Outer Diameter (mm) | 100(mm) | 100(mm) | 100(mm) |
| Width (mm) | 42,4(mm) | 46(mm) | 46(mm) |
| d | 45 mm 1.7717 in | 45 mm 1.7717 in | 45 mm 1.7717 in |
| D | 100 mm 3.937 in | 100 mm 3.937 in | 100 mm 3.937 in |
| T1 | 42,4 mm 1.6693 in | ||
| T2 | 46 mm 1.811 in | ||
| d1 | 100 mm 3.937 in | 100 mm 3.937 in | 100 mm 3.937 in |
| r min. | 1,1 mm 0.0433 in | 1,1 mm 0.0433 in | 1.1 mm 0.0433 in |
| A | 29 mm 1.1417 in | 29 mm 1.1417 in | 29 mm 1.1417 in |
| C | 12,5 mm 0.4921 in | ||
| D1 | 47 mm 1.8504 in | 47 mm 1.8504 in | 47 mm 1.8504 in |
| D2 | 72 mm 2.8346 in | 72 mm 2.8346 in | 72 mm 2.8346 in |
| D3 | 105 mm 4.1339 in | 105 mm 4.1339 in | 105 mm 4.1339 in |
| R | 80 mm 3.1496 in | 80 mm 3.1496 in | 80 mm 3.1496 in |
| da min. | 78 mm 3.0709 in | 78 mm 3.0709 in | |
| Da max. | 67 mm 2.6378 in | 67 mm 2.6378 in | |
| ra max. | 1 mm 0.0394 in | 1 mm 0.0394 in | |
| Weight | 1,82 Kg | 1,87 Kg | 1.80 Kg |
| Basic dynamic load rating (C) | 130 kN | 128 kN | 129 kN |
| Basic static load rating (C0) | 242 kN | 246 kN | 243 kN |
| (Grease) Lubrication Speed | 1500 r/min | 1600 r/min | 1600 r/min |
