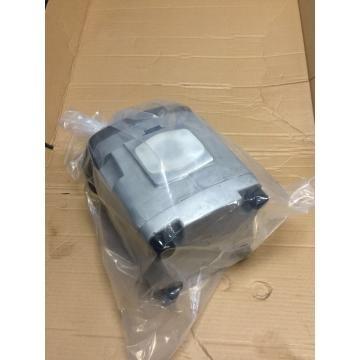

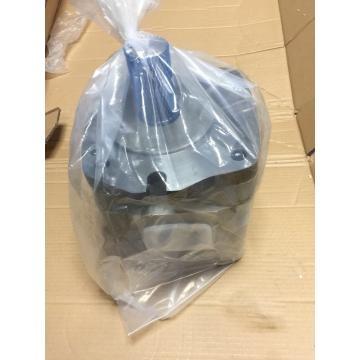

CBT-F430-ALHL High Press Gear Oil pump

Product Description

CBT-F430-ALHL Gear oil pump Product features

High strength aluminum alloy shell

The input shaft has flat key, rectangle spline, involute spline and SAE involute spline.

The connection between inlet and outlet is provided with thread, flange and so on.

The automatic compensation mechanism of axial clearance enables the pump to maintain high efficiency for a long time.

It has high working pressure, wide speed range and high volumetric efficiency at low speed up to 400rpm.

Model description Model Coding

(1) product code Product code

Pressure level Pressure grade F: 20MPa

3. Gear modulus Gear modulus 4

(4) nominal displacement Nominal displacement (mL/r)

5. Installation form Mounting A: diamond flange Oval

Oil port form Joining port F: flange joint Flange L: threaded connection Screw

Shaft end P: plain key_: SAE spline H: Rectangle spline

X: involute spline Involute spline

Rotation L: Left (counterclockwise) R: Right (clockwise is omitted)
